MX64
_MX630-Beschnitten.GIF)

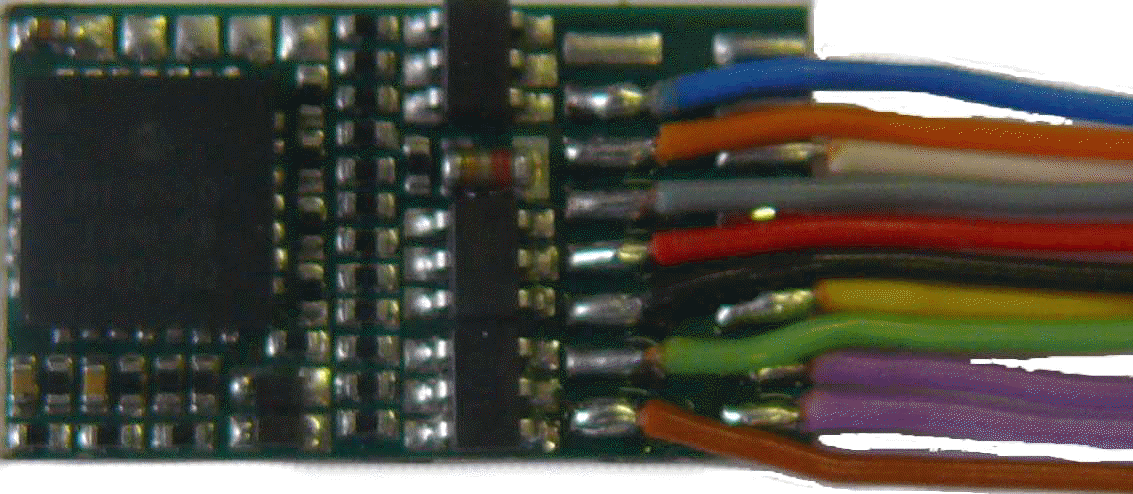

MX630
MX630
.... 9 wires
MX630R . NEM 652
MX630F . NEM 651
MX630P . PluX-16
High power (1,8 A):
MX630H -
planned
Low voltage for function outputs (1,2 / 5 V):
MX630V1,
MX630V5
-planned |
„Last call“
MX64:
(before being replaced by MX630)
Users which want to stay
with the well-known type have no the last chance to buy MX64.
MX63
is already sold out (if there is enough space could be replaces by MX64).h
!
The new decoder family
MX630
:
End of June
the manufacturing of the new decoders will be started. MX630, MX630R, ....
will replace MX63, MX63R, MX63F and MX64, MX64R, MX64F, MX64H, MX64V.
MX630
is a little bit smaller
(20 x 11 x 3,5 mm)
than MX63,
but is more resistant against high voltage (up to 60 V) and overcurrent.
MX630 uses
the same microcontroller and the software as MX620 and MX64D; very similar
is also the sound decoder MX640. So many characteristics are now identical
for all small scale decoders. The further software development for all
decoder swill be done in common.
Like for
all ZIMO decoders the software update can be done by the user and without
opening of the loco.
Now all ZIMO "N and 00/H0" Decoders (MX620, MX630, MX64D, and MX640)
have the following common features:
-
Motor- and
Functions from 1,2 to 2 A (MX630 and others) for example 0,8 A (MX620) ,
-
Current
overload protection (with a tolerance for a short time to 2 or 3 A) and
temperature protection,
-
6 function
outputs (MX630 and others) or 4 function outputs (MX620), each up to 0.5
A load,
-
depending on
the type, 2 to 5 logic outputs (externally amplified) or LED outputs, in
addition to the function outputs,
-
depending on
the type, 2 or 4 connections for servos in addition to the function
outputs,
-
suitable for
all DC motors and wound-armature motors,
-
ZIMO motor
control with many optimization options,
-
ZIMO
acceleration settings ( "in accordance with standards", according to
NMRA extensions "adaptive," exponential ", ...),
-
Shunting
functions (half-speed, reduction or shutdown of the momentum and braking
effects),alternatively by F3, F4, or MAN),
-
time-limited
coupling control and coupling dance (auto on/off buttons),
-
full NMRA
function mapping, as well as ZIMO extensions (directional assignments.
Swiss lighting control etc.),
-
Blinking,
dimming, American and other lighting effects (including soft start, stop
light, flickering, automatic Time-off, ..)
-
SUSI-interface, depending on type, on solder pads, on PluX-Socket
(MX630P) or on21-pin socket (MX64D, MX640D),
-
Braking on DC,
ABC, “Märklin”,
-
ZIMO signal
influenced constant distance braking (HLU),
-
ZIMO train
number recognition,
-
km/h-control
(per speed step1/2 km/h, 1 km/h or 2 km/h) as an alternative to
conventional speed step control,
-
constant
braking distance in two variations,
-
Analog
operation either regulated or unregulated (MX630 also AC-analogue),
-
Other features
under development (for example - CV-Sets, ..)
-
RailCom: km /
h feedback, CV "on-the-main" and then validated programming, address
RailCom feedback; RailCom many more applications are scheduled in future
software versions.
-
Updatable
Software: New Software versions can be loaded without opening the loco,
with the help of the ZIMO Decoder Update Device MXDECUP or the MX31ZL;
from PC with Decoder Update Program or (real easy with MX331ZL) directly
from USBstick.
Price of MX630 like MX64,
that means starting with about EUR 30,- at your dealer
|
